G-scan 180180 DV Cargo
Description

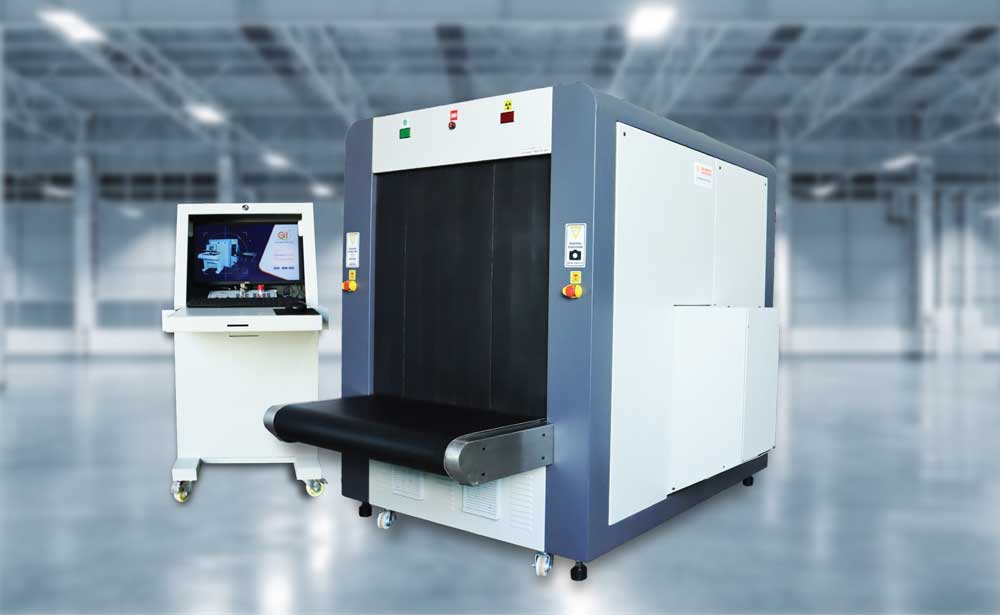

Gujar Industries India Pvt. Ltd. G-scan 180180 DV Cargo X-ray cargo inspection system Is a heavy-duty cargo inspection system with a tunnel size of 1800mmx 1800mm with a load-bearing capacity of 3000 kg. With the robust and high wear and tear design, Gujar Industries India XCIS has a global quality standard and performs perfectly in the market. G-scan 180180 DV Cargo X-ray cargo inspection system is widely popular for its heavy-duty product scanning application.
Application
Port Trust, Custom Department, Naval Ships, Ship Building Companies, Railways.
Specification Chart
Technical Specification
| 1 | Inspection Tunnel (mm) | 1800 x 1800 mm |
|---|---|---|
| 2 | Maximum Conveyor Load (kg) | 3000 kg |
| 3 | Product Weight (kg) | 2 Ton |
Electrical
| Power Supply | 230 VAC, 50 Hz |
|---|---|
| Power Consumption | 2 KVA |
| Current | 1.2 mA |
| Anode Voltage | MAX 160-200 kv |
| Wire Resolution | 38AWG/42SWG |
Storage
| Operating Temperature | 0°C to 60°C |
|---|---|
| Storage Temperature | -20°C to 70°C |
| Humidity | 98% |
| Noise Level | 55 db |
| Protection Class | IP 43 |
Other
| Product Mobility | Caster Wheels |
|---|---|
| System Access | 4 level if access |
| Network Applications | Option Available |
| Product Body | Steel with Powder Coated |
System
| Computer Monitor Size | 22 inch |
|---|---|
| Computer Specification | Latest |
| Operating System | Windows |
| Image Resolution | 1280 X 1024 pixels |
X-ray
| Beam Direction | Top/Side |
|---|---|
| X-ray Radiation Leakage | 0.1 mR/hour |
| X-ray Converter | L Shaped Photo Diode Array |
Convyor
| Conveyor Speed | 0.2m/sec |
|---|---|
| Conveyor Height | 300 mm |
