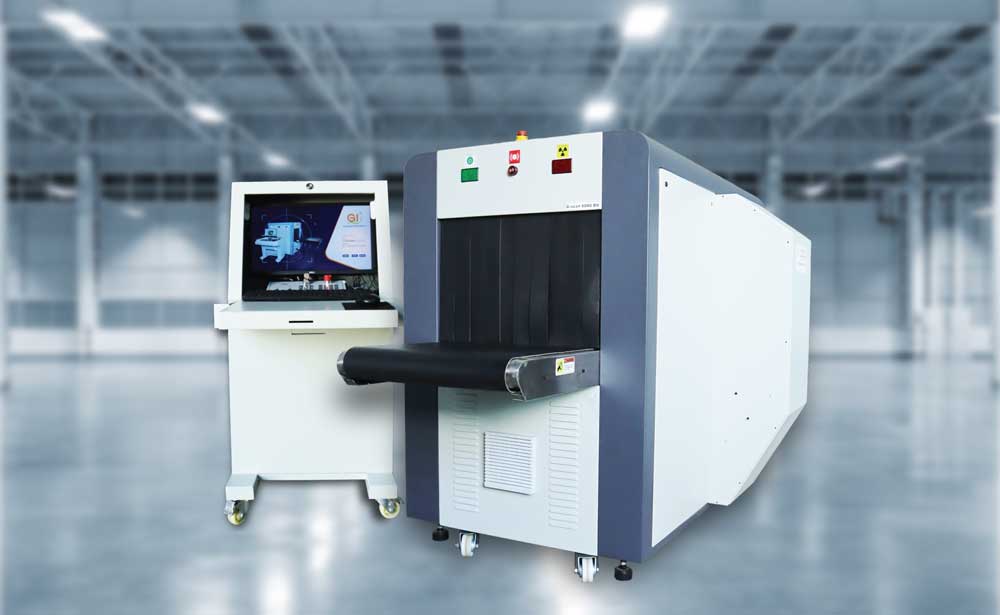

X Ray Baggage Scanner G-Scan 6040 DV
Description
Gujar Industries India Pvt. Ltd. G-scan 6040 DV x-ray baggage inspection machine, has a tunnel size of 600 mm by 400 mm and can scan objects higher than standard size. G-scan 6040 DV is an advanced x-ray machine with features such material detection, High resolution image, international quality standards, Robust design, High load bearing capacity and precise threat scanning.
Application
Banks, Airports and Multinational firms, Industries, Railway station, Bus station, Convention centers, Government organizations, Societies, shopping malls, Theaters, Metro station, Defense, Government events, Universities, Theme parks, Hotel, Hostel, Restaurant etc.
Specification Chart
Technical Specification
| 1 | Inspection Tunnel (mm) | 600 x 400 mm |
|---|---|---|
| 2 | Maximum Conveyor Load (kg) | 160 kg |
| 3 | Product Weight (kg) | 750 kg |
| 4 | Dimensions (mm) | 1390x910x2361 mm |
Electrical
| Power Supply | 230 VAC, 50 Hz |
|---|---|
| Power Consumption | 1 KVA |
| Current | 1.2 mA |
| Anode Voltage | MAX 160 |
| Wire Resolution | 38AWG/42SWG |
Storage
| Operating Temperature | 0°C to 60°C |
|---|---|
| Storage Temperature | -20°C to 70°C |
| Humidity | 98% |
| Noise Level | 55 db |
| Protection Class | IP 43 |
Other
| Product Mobility | Caster Wheels |
|---|---|
| System Access | 4 level if access |
| Network Applications | Option Available |
| Product Body | Steel with Powder Coated |
System
| Computer Monitor Size | 22 inch |
|---|---|
| Computer Specification | Latest |
| Operating System | Windows |
| Image Resolution | 1280 X 1024 pixels |
X-ray
| Beam Direction | Bottom/Side |
|---|---|
| X-ray Radiation Leakage | 0.1 mR/hour |
| X-ray Converter | L Shaped Photo Diode Array |
Convyor
| Conveyor Speed | 0.2m/sec |
|---|---|
| Conveyor Height | 700 mm |
