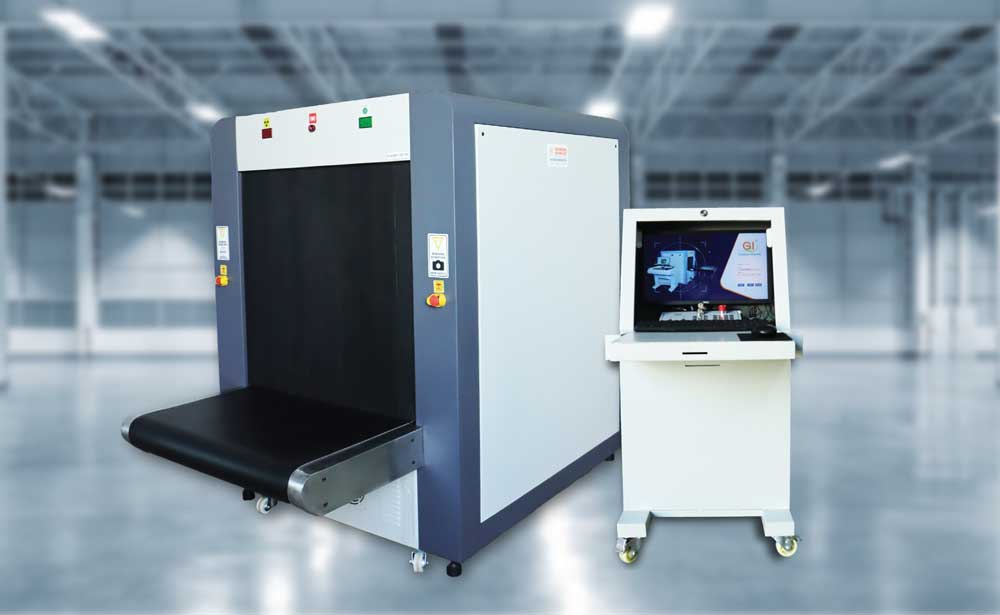

X Ray Baggage Scanner G-Scan 100100
Description
Gujar Industries India Pvt. Ltd. G-scan 100100 x-ray baggage inspection system has a tunnel size of 1000 mm by 1000 mm and can scan small as well as very large objects with equal efficiency. The baggage scanner uses advanced high-resolution detectors that increases detection sensitivity, improves image resolution and optimizes image presentation. Gujar Industries India G-scan 100100 holds a capacity of scanning wide array of material is widely popular for its Range.
Application
Banks, Airports and Multinational firms, Industries, Railway station, Bus station, Convention centers, Government organizations, Societies, shopping malls, Theaters, Metro station, Defense, Government events, Universities, Theme parks, Hotel, Hostel, Restaurant etc.
Specification Chart
Technical Specification
| 1 | Inspection Tunnel (mm) | 1000 x 1000 mm |
|---|---|---|
| 2 | Maximum Conveyor Load (kg) | 200 kg |
| 3 | Product Weight (kg) | 900 kg |
| 4 | Dimensions (mm) | 1880x1400x990 mm |
Electrical
| Power Supply | 230 VAC, 50 Hz |
|---|---|
| Power Consumption | 1 KVA |
| Current | 1.2 mA |
| Anode Voltage | MAX 160-200 kv |
| Wire Resolution | 38AWG/42SWG |
Storage
| Operating Temperature | 0°C to 60°C |
|---|---|
| Storage Temperature | -20°C to 70°C |
| Humidity | 98% |
| Noise Level | 55 db |
| Protection Class | IP 43 |
Other
| Product Mobility | Caster Wheels |
|---|---|
| System Access | 4 level if access |
| Network Applications | Option Available |
| Product Body | Steel with Powder Coated |
System
| Computer Monitor Size | 22 inch |
|---|---|
| Computer Specification | Latest |
| Operating System | Windows |
| Image Resolution | 1280 X 1024 pixels |
X-ray
| Beam Direction | Bottom/Side |
|---|---|
| X-ray Radiation Leakage | 0.1 mR/hour |
| X-ray Converter | L Shaped Photo Diode Array |
Convyor
| Conveyor Speed | 0.2m/sec |
|---|---|
| Conveyor Height | 620 mm |
