Description

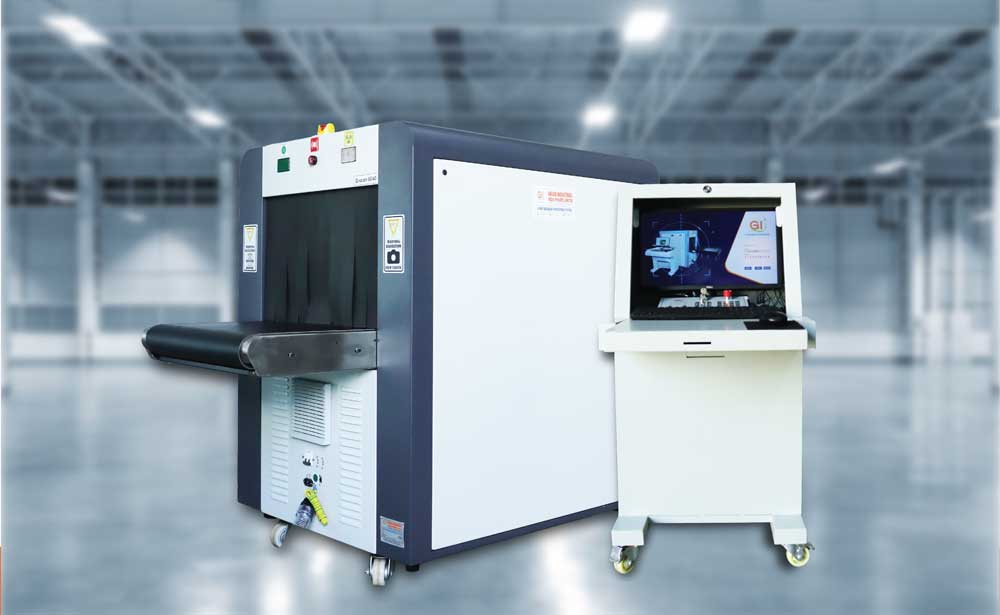

Gujar Industries India Pvt. Ltd. G-scan 6040 x-ray baggage inspection machine, has a tunnel size of 600 mm by 400 mm and can scan objects higher than standard size. G-scan 6040 is an advanced X Ray Baggage Scanner manufacturers in Pune Maharashtra India with features such material detection, High resolution image, international quality standards, Robust design, High load bearing capacity and precise threat scanning.
Application
The x ray bagggage scannerare used in Banks, Airports and Multinational firms, Industries, Railway station, Bus station, Convention centers, Government organizations, Societies, shopping malls, Theaters, Metro station, Defense, Government events, Universities, Theme parks, Hotel, Hostel, Restaurant etc.
Specification Chart
Technical Specification of X Ray Baggage Scanner
| 1 | Inspection Tunnel (mm) | 600 x 400 mm |
|---|---|---|
| 2 | Maximum Conveyor Load (kg) | 160 kg |
| 3 | Product Weight (kg) | 600 kg |
| 4 | Dimensions (mm) | 1300x910x2000 mm |
Electrical
| Power Supply | 230 VAC, 50 Hz |
|---|---|
| Power Consumption | 0.5 KVA |
| Current | 1.2 mA |
| Anode Voltage | MAX 160 |
| Wire Resolution | 38AWG/42SWG |
Storage
| Operating Temperature | 0°C to 60°C |
|---|---|
| Storage Temperature | -20°C to 70°C |
| Humidity | 98% |
| Noise Level | 55 db |
| Protection Class | IP 43 |
Other
| Product Mobility | Caster Wheels |
|---|---|
| System Access | 4 level if access |
| Network Applications | Option Available |
| Product Body | Steel with Powder Coated |
System
| Computer Monitor Size | inch |
|---|---|
| Computer Specification | Latest |
| Operating System | Windows |
| Image Resolution |
X-ray
| Beam Direction | Bottom |
|---|---|
| X-ray Radiation Leakage | 0.1 mR/hour |
| X-ray Converter | L Shaped Photo Diode Array |
Convyor
| Conveyor Speed | |
|---|---|
| Conveyor Height |
