G-Scan X Ray Baggage Scanner 5030
G-Scan X Ray Baggage Scanner 5030 - Gujar Industries India Pvt. Ltd.

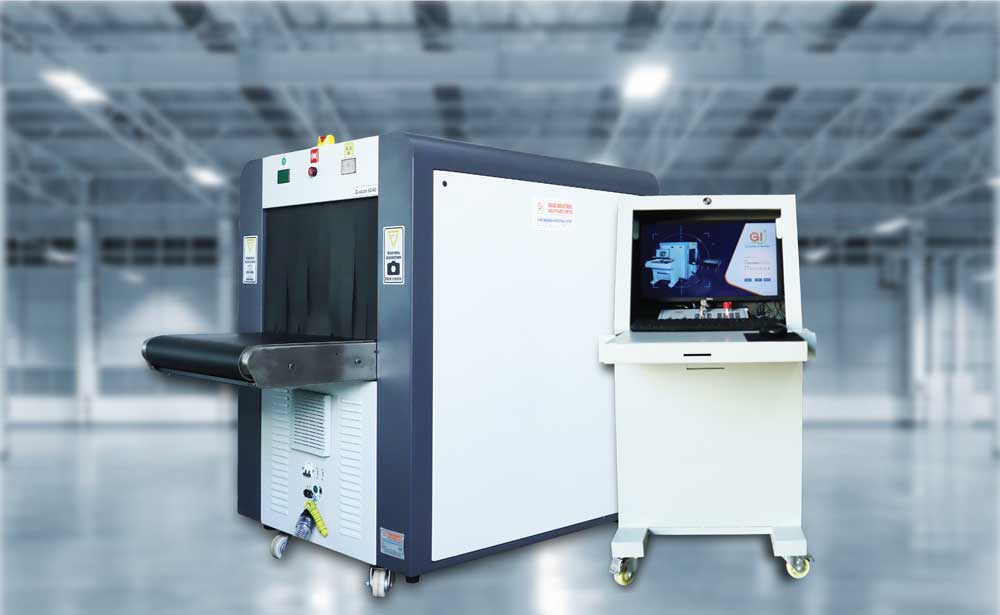

Gujar Industries India Pvt. Ltd. G-Scan X Ray Baggage Scanner 5030 is a compact scanner designed for small packages. 5030 size makes it an ideal choice for compact checkpoint security with flexibility and performance.
G-scan 5030 x-ray baggage inspection system is a Robust product with a capacity of processing high quality images and works effectively with compact design.
Application
Banks, Airports and Multinational firms, Industries, Railway station, Bus station, Convention centers, Government organizations, Societies, shopping malls, Theaters, Metro station, Defense, Government events, Universities, Theme parks, Hotel, Hostel, Restaurant etc.
Specification Chart
Technical Specification
| 1 | Inspection Tunnel (mm) | 500 x 300 mm |
|---|---|---|
| 2 | Maximum Conveyor Load (kg) | 160 kg |
| 3 | Product Weight (kg) | 520 kg |
| 4 | Dimensions (mm) | 1220x775x1360 mm |
Electrical
| Power Supply | 230 VAC, 50 Hz |
|---|---|
| Power Consumption | 0.5 KVA |
| Current | 1.2 mA |
| Anode Voltage | MAX 160 |
| Wire Resolution | 38AWG/42SWG |
Storage
| Operating Temperature | 0°C to 60°C |
|---|---|
| Storage Temperature | -20°C to 70°C |
| Humidity | 98% |
| Noise Level | 55 db |
| Protection Class | IP 43 |
Other
| Product Mobility | Caster Wheels |
|---|---|
| System Access | 4 level if access |
| Network Applications | Option Available |
| Product Body | Steel with Powder Coated |
System
| Computer Monitor Size | 22 inch |
|---|---|
| Computer Specification | Latest |
| Operating System | Windows |
| Image Resolution | 1280 X 1024 pixels |
X-ray
| Beam Direction | Bottom |
|---|---|
| X-ray Radiation Leakage | 0.1 mR/hour |
| X-ray Converter | L Shaped Photo Diode Array |
Convyor
| Conveyor Speed | 0.2m/sec |
|---|---|
| Conveyor Height | 700 mm |
